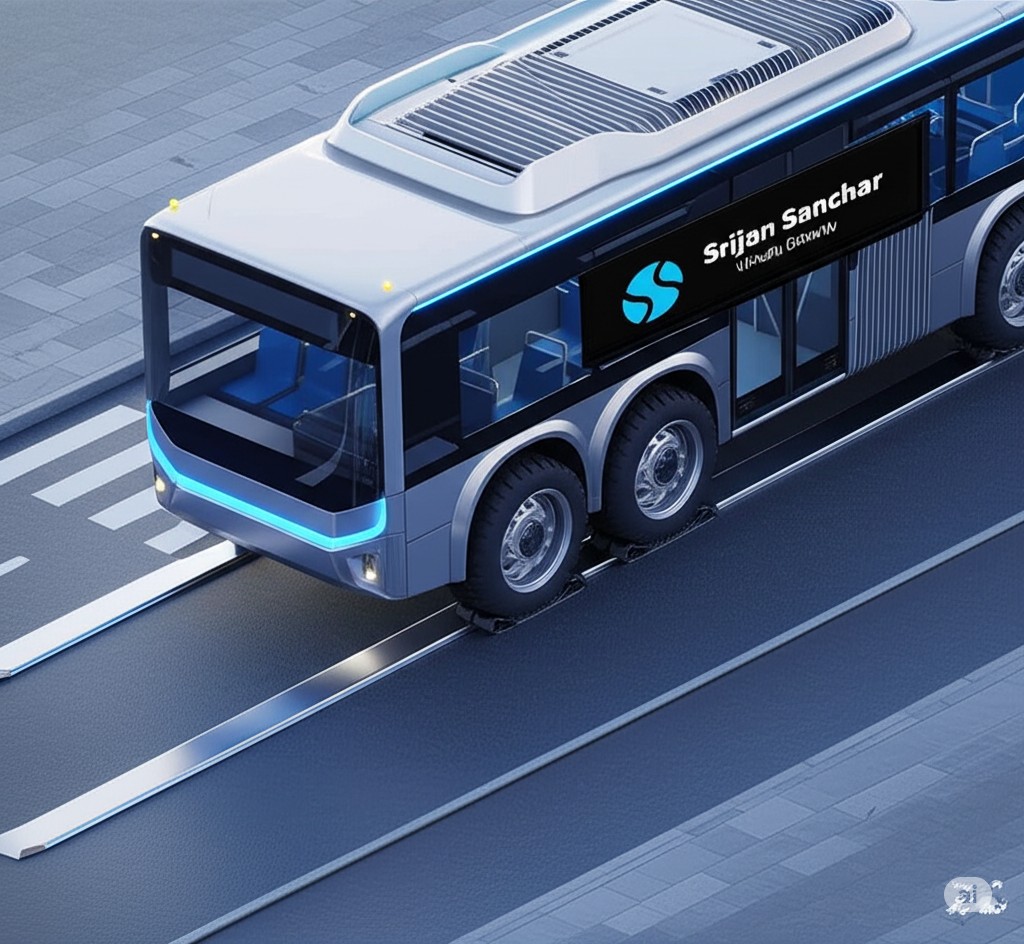

Hybrid Bus System Steel Strip Guidance with Rubber Traction

This design proposes a bus that primarily utilizes the low-friction properties of steel-on-rubber for guidance and support, while still leveraging the traction and comfort of rubber tires for propulsion and braking, especially on the steel strips.

Core Concept: The bus would have a primary set of rubber tires running on the steel strips, and potentially a secondary set of standard rubber tires for conventional road operation or enhanced stability. The key is to manage the interaction between the rubber tires and the steel strips effectively.

Bus Design Elements:

1.     Chassis and Suspension:

o   Rigid Chassis with Independent Suspension: A robust chassis is essential to maintain precise alignment with the steel strips. Independent suspension for each wheel would be crucial to absorb road imperfections and ensure consistent contact with the strips, even if the road surface isn't perfectly flat.

o   Active Suspension System: An advanced active suspension system could further optimize ride comfort and maintain optimal contact pressure between the rubber wheels and the steel strips, dynamically adjusting for varying loads and road conditions.

2.     Wheel System (The Crux of the Design):

o   Specialized Rubber Wheels:

§  Material: The rubber compound for these wheels would need to be specifically formulated for low rolling resistance on steel, while still offering good wear characteristics and grip for braking/acceleration. A harder rubber compound might be considered, possibly with a thin, durable outer layer designed for steel contact.

§  Tread Pattern: A completely smooth tread pattern (like train wheels) would offer the lowest rolling resistance on the steel strips. However, some very fine siping or micro-grooves might be incorporated for water displacement and emergency braking on the steel.

§  Profile: The wheel profile would be flat or slightly crowned to maximize contact area with the flat steel strips, ensuring even pressure distribution and preventing premature wear.

o   Guidance Mechanism: This is critical.

§  Flangeless Primary Wheels with Secondary Guide Wheels: The primary rubber wheels would be flangeless, running directly on the steel strips. To keep the bus centered and prevent derailing, smaller, robust guide wheels (possibly made of a hard, low-friction polymer or specialized steel-rimmed rubber) would be located horizontally, pressing against the sides of the steel strips. These guide wheels would bear minimal vertical load but provide lateral guidance.

§  Integrated Flange-like Design (Less Likely due to Rubber Properties): While typical for trains, creating a durable, load-bearing "flange" directly from rubber that interacts with a steel strip's edge is problematic due to rubber's deformability and wear. This is why a separate guidance system is preferred.

o   Dual Wheel System (Optional but Recommended for Versatility):

§  Primary Steel-Strip Wheels: As described above, optimized for low friction on the steel.

§  Secondary Conventional Road Wheels: These would be slightly retracted during steel strip operation and deployed for off-strip travel (e.g., pulling into bus stops, detours, or areas without steel strips). This adds flexibility but also complexity.

3.     Braking System:

o   Regenerative Braking: Essential for energy efficiency. The electric motors would act as generators, converting kinetic energy back into electricity when decelerating.

o   Disc Brakes with ABS: High-performance disc brakes would be required for robust and safe stopping, especially given the potentially reduced friction on the steel strips compared to traditional asphalt. An advanced Anti-lock Braking System (ABS) would be crucial to prevent skidding.

o   Electromagnetic Brakes (Potential Enhancement): Similar to some high-speed trains, electromagnetic brakes could be considered as an auxiliary system, interacting directly with the steel strips for additional braking force, especially in emergencies. This would require specific strip materials to be magnetically permeable.

4.     Propulsion System:

o   Electric Powertrain: An all-electric or hybrid-electric powertrain would be ideal. Electric motors offer excellent torque characteristics, crucial for acceleration and regenerative braking.

o   In-Wheel Motors: This would simplify the drivetrain, reduce weight, and offer precise control over individual wheels, potentially aiding in steering and stability.

5.     Safety Features:

o   Automated Guidance System: Sensors (LIDAR, cameras, GPS, ultrasonic) to monitor the bus's position relative to the steel strips, ensuring it stays centered. This could feed into the steering system for automatic adjustments.

o   Obstacle Detection and Avoidance: Standard for modern buses, but even more critical given the fixed path.

o   Emergency Braking Systems: Automated emergency braking if obstacles are detected or if the bus deviates too far from the strips.

o   Robust Strip-End Protection: Design considerations for how the bus transitions on and off the steel strips safely, perhaps with ramped sections.

The Steel Strips:

·        Material: High-strength, wear-resistant steel. Considerations for anti-corrosion treatments.

·        Installation: Precisely embedded into the road surface, flush with the asphalt or concrete to prevent trip hazards for pedestrians and other vehicles. Excellent drainage systems around the strips would be necessary to prevent water accumulation, which could reduce rubber-on-steel friction.

·        Configuration: Typically two parallel strips, spaced to accommodate the bus's wheel track.

·        Maintenance: Regular inspection for wear, damage, and debris.

Friction Reduction Analysis:

·        Rubber on Steel vs. Rubber on Asphalt: The primary benefit is indeed the lower rolling resistance of a smooth rubber wheel on a smooth steel surface compared to a rubber tire on asphalt. Asphalt's rough texture and deformation contribute significantly to rolling friction.

·        Potential Challenges:

o   Wet Conditions: Water on steel can drastically reduce friction, leading to reduced braking performance and potential skidding. The specialized rubber compound and tread design would need to mitigate this. Effective drainage of the steel strips would be paramount.

o   Debris: Small stones, sand, or other debris on the steel strips could increase friction, cause wear, or even damage the rubber wheels. Regular cleaning of the strips would be necessary.

o   Wear: While steel is harder than rubber, prolonged operation will still cause wear on the rubber wheels. The rate of wear compared to asphalt would need extensive testing.

Advantages of this System:

·        Reduced Rolling Resistance: The primary goal, leading to significant fuel/energy savings (especially for electric buses) and lower emissions.

·        Smoother Ride: Less vibration and noise transfer compared to traditional asphalt roads, potentially enhancing passenger comfort.

·        Precise Guidance: The steel strips provide a fixed, predictable path, which could enable more efficient autonomous operation and potentially higher speeds in dedicated lanes.

·        Reduced Tire Wear (Potentially): If the rubber compound is optimized, wear on the tires due to the smooth steel surface could be less than on abrasive asphalt. This would require extensive testing.

Disadvantages/Challenges:

·        High Infrastructure Cost: Laying steel strips across entire street networks would be incredibly expensive and disruptive.

·        Limited Flexibility: Buses would be restricted to routes with steel strips.

·        Maintenance of Strips: The steel strips themselves would require regular inspection and maintenance.

·        Safety Concerns with Other Road Users: The flush installation is critical. Any protrusion could be a hazard for cyclists, motorcyclists, or pedestrians.

·        Braking Performance: As mentioned, maintaining adequate braking friction in all weather conditions on steel would be a key engineering challenge.

·        Switching Mechanisms: If the bus needs to transition from steel strips to regular roads, robust and seamless switching mechanisms would be required.

Conclusion:

Designing a bus with rubber wheels to run on embedded steel strips is a fascinating concept that directly addresses the goal of reducing rolling friction. While theoretically offering significant energy efficiency benefits, the practical implementation presents substantial engineering and infrastructural challenges. The success of such a system would hinge on:

·        Development of specialized, durable rubber compounds that offer low friction on steel in varying weather conditions while maintaining adequate grip for braking.

·        Robust and reliable guidance systems to keep the bus centered on the strips.

·        Significant investment in infrastructure for installing and maintaining the steel strips.

·        Addressing safety concerns for all road users.

This concept leans towards a "light rail on rubber" or "guided busway" type of system, offering a middle ground between traditional buses and full-fledged rail systems.











































The "bus on steel strip" system you described is essentially a form of guided busway or bus rapid transit (BRT) with specialized infrastructure. To compare its cost with traditional metro systems, let's break down the capital (building) and operational costs.

General Principle:

Metro systems (heavy rail, often underground or elevated) are generally the most expensive to build and maintain due to their dedicated, grade-separated infrastructure, complex signaling, and larger, heavier rolling stock.1 Guided busways, including the steel-strip concept, typically fall somewhere between conventional bus systems and light rail/metro in terms of cost and capacity.

Cost Comparison:

1. Capital (Building) Costs:

·        Traditional Metro Systems:

o   Very High: Metro systems are the most expensive per kilometer to build. This is primarily due to:

§  Extensive Civil Works: Tunnels (underground metro) or elevated viaducts are extremely costly.² Underground construction, especially in dense urban areas, can face immense challenges with utilities, ground conditions, and disruption.³ Elevated structures require significant land acquisition and visual impact.

§  Grade Separation: Metro systems are typically fully grade-separated (no intersections with roads or pedestrians), which means expensive bridges, underpasses, or tunnels.

§  Complex Stations: Metro stations are often large, elaborate, and include multiple levels, escalators, elevators, and extensive ticketing/security infrastructure.⁴

§  Heavy Rail Track & Electrification: Requires robust track beds, rails, and usually overhead catenary or third rail power systems.

§  Signaling and Control Systems: Highly sophisticated and expensive.

§  Depots and Maintenance Facilities: Large and specialized.

o   Cost Range: Studies show metro costs ranging from USD 50 million to USD 150 million per kilometer (or even higher, up to USD 600 million - USD 1 billion per mile in some US examples for subways).⁵ In India, specific metro projects can range widely, with large urban metros easily costing tens of thousands of crores for relatively shorter networks.

·        Bus on Steel Strip (Guided Busway/Specialized BRT):

o   Moderate to High (but significantly lower than Metro): While more expensive than a conventional bus lane, this system would still be substantially cheaper than a metro.

o   Key Cost Drivers:

§  Steel Strip Infrastructure: The cost of manufacturing, transporting, and precisely embedding steel strips into the road surface would be a significant new cost component. This would involve specialized road construction.

§  Guidance System: Implementing the lateral guide wheels and ensuring their precision and durability would add to vehicle and infrastructure costs.

§  Road Reinforcement: The road surface beneath and around the steel strips might need to be reinforced to handle the concentrated load and prevent subsidence, adding to civil works.

§  Grade Separation (Variable): If the guided busway is designed to be fully grade-separated (like some higher-end BRT), the cost would increase dramatically, approaching light rail costs. However, if it largely operates at-grade with steel strips embedded in existing streets, the civil works costs would be much lower. The intent of your design (reducing friction) suggests at-grade operation as much as possible.

§  Bus Modification: The specialized rubber wheels and guide wheel system would add to the cost of each bus.

§  Stations: While potentially simpler than metro stations, they would still require robust platforms and possibly fare collection systems.

o   Cost Range:

§  Standard BRT systems (which this system is a variation of) typically cost USD 1 million to USD 30 million per kilometer (sometimes more for highly grade-separated sections).

§  The steel strip element would add to this. A basic embedded steel strip on an existing road would be cheaper than building entirely new, dedicated, raised concrete guideways common in some guided busways (like O-Bahn). However, ensuring precise alignment and durability in real-world street conditions presents a unique challenge that could drive costs up. It's likely to fall on the higher end of the BRT spectrum, perhaps USD 10 million to USD 50 million per kilometer, depending on the extent of grade separation and complexity of the embedded system.

2. Operation and Maintenance (O&M) Costs:

·        Traditional Metro Systems:

o   High Operational Efficiency per Passenger (but high absolute costs): While steel-on-steel offers very low rolling resistance and high capacity, leading to low energy consumption per passenger-kilometer for a full train, the overall O&M costs are high due to:

§  High Energy Consumption: Despite efficiency, moving very heavy trains requires significant power.

§  Extensive Maintenance: Tracks, signaling, electrical systems, tunnels/viaducts, and rolling stock require constant, specialized, and often expensive maintenance.⁶

§  Large Staffing: Metro systems require a large workforce for operations, maintenance, security, and station management.⁷

§  Specialized Training: Staff often require highly specialized training.

§  Security: Comprehensive security measures are costly.

·        Bus on Steel Strip (Guided Busway/Specialized BRT):

o   Lower than Metro, but potentially higher than conventional bus:

o   Energy Efficiency (Potential Advantage): The primary goal of reducing rolling friction on steel strips could lead to lower energy consumption per bus compared to running on asphalt, especially for electric buses. This would be a significant operational saving.

o   Vehicle Maintenance: While rubber wheels are simpler than steel train wheels, they still wear out. The interaction with the steel strip would require a specific maintenance regime for the specialized rubber and guide wheels. The steel strips themselves would need cleaning and regular inspection for debris, wear, and corrosion, which adds a new maintenance burden not present in conventional bus systems.

o   Staffing: Likely similar to a high-end BRT system, potentially requiring fewer drivers per passenger than conventional buses if larger articulated or coupled buses are used and if automation is incorporated. However, specialized maintenance staff for the guided system would be needed.

o   Infrastructure Maintenance: Maintenance of the embedded steel strips (cleaning, repair, ensuring flushness with the road) would be a new and ongoing cost. This is generally less complex than maintaining a full metro track and tunnel/viaduct system but more than just repaving a road.

o   Flexibility Benefits: The ability to leave the steel strips for last-mile delivery or detours could reduce the need for feeder services, potentially saving overall operational costs.

Summary Comparison Table (Conceptual):

Feature	Traditional Metro System	Bus on Steel Strip (Guided Busway)
Capital Cost	Very High (tens to hundreds of millions USD/km)	Moderate to High (tens of millions USD/km, lower than metro)
Infrastructure	Full grade separation (tunnels, elevated), heavy rail	Embedded steel strips (mostly at-grade), specialized road surface
Vehicles	Heavy rail trains, specialized	Modified rubber-wheeled buses, specialized guidance system
Capacity	Very High (tens of thousands PPHPD)	High (similar to high-end BRT, 9,000-30,000 PPHPD)
Operational Efficiency (Energy)	High (per passenger-km for full train)	Potentially High (due to reduced friction), especially for electric
Maintenance Cost (Infrastructure)	Very High (complex tracks, civil works, signaling)	Moderate (steel strips, road surface, less complex civil works)
Maintenance Cost (Vehicles)	High (complex trains)	Moderate (specialized rubber/guide wheels, otherwise bus-like)
Staffing	High (drivers, station staff, maintenance)	Moderate (drivers, maintenance; potentially less per passenger with automation)
Flexibility	Very Low (fixed routes)	High (can potentially leave guided strips for conventional roads)

Conclusion:

The "bus on steel strip" concept would almost certainly be significantly cheaper to build than a traditional metro system, especially if it primarily operates at-grade using embedded strips rather than requiring extensive elevated or underground sections. The cost of laying steel strips, while new, would be orders of magnitude less than boring tunnels or constructing elevated viaducts.

Operationally, the promised friction reduction could lead to lower energy costs per vehicle compared to a conventional bus on asphalt, potentially making it more efficient than a standard BRT. However, the specialized maintenance for the steel strips and modified rubber wheels would be a new factor to consider. Compared to metro, while absolute operational costs might be lower due to simpler infrastructure and potentially fewer staff per vehicle (if automated), the higher passenger-carrying capacity of metro trains means that per passenger-kilometer, metro can sometimes be more cost-effective at very high demand levels.

Ultimately, the bus on steel strip would likely be a mid-range solution in terms of cost and capacity, sitting between conventional high-capacity BRT and light rail, and much more affordable than heavy metro, making it potentially suitable for corridors with significant, but not ultra-high, demand where metro construction is financially prohibitive.
